Captana user management guide

Action to be taken on a weekly basis on cameras that have a battery below10% and that
have been offline for the last 24h

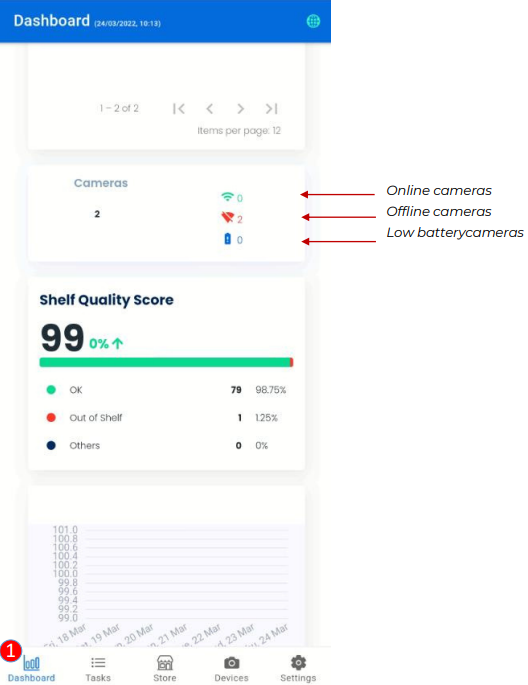

On the Captana app, cameras can be looked up on the Dashboard

1st tab:

Action to be taken on a weekly basis on cameras that have a batterybelow10% and that have
been offline for the last 24h
On the Captana app
1st step: Identify the cameras location

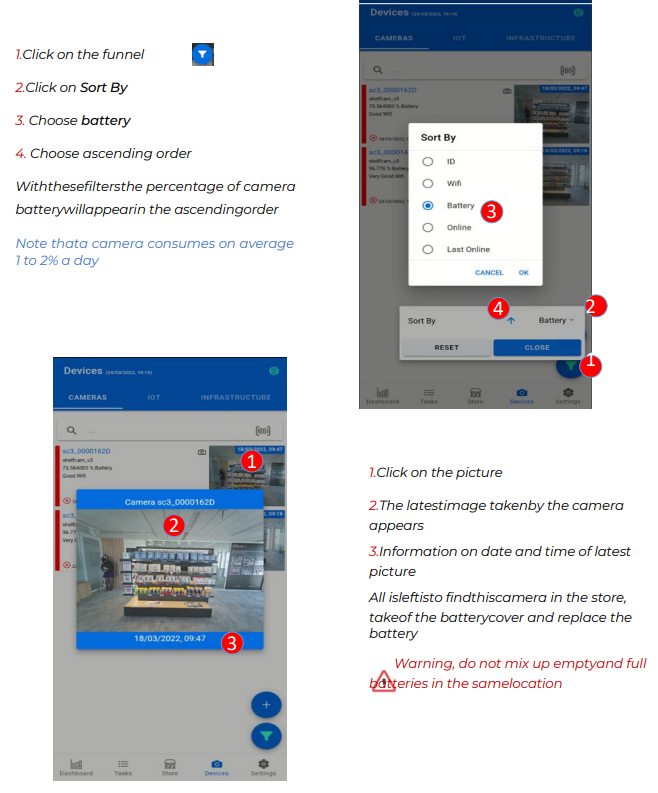

The third tab Devices helps show the battery level for each camera

2nd step: change the battery

1. Take the camera off the fixing



2. Take the cover off using the tool and slide the cover aside

3. Swap the battery(the LED will flash, otherwise take the
battery away and put it back slowly)

 If the LED still does not light up, take another battery and check that
the connectors have not moved.

4. Put the cover back folding the plastic bit onto the battery

• Put the camera back where it was, lower part first.
• Then clip the upper part.
• Make sure that the metal pin is in a rails hole.

5. Make sure that the lense is clean
